TM 9-2320-269-10
USING EMERGENCY POWER - CONTINUED

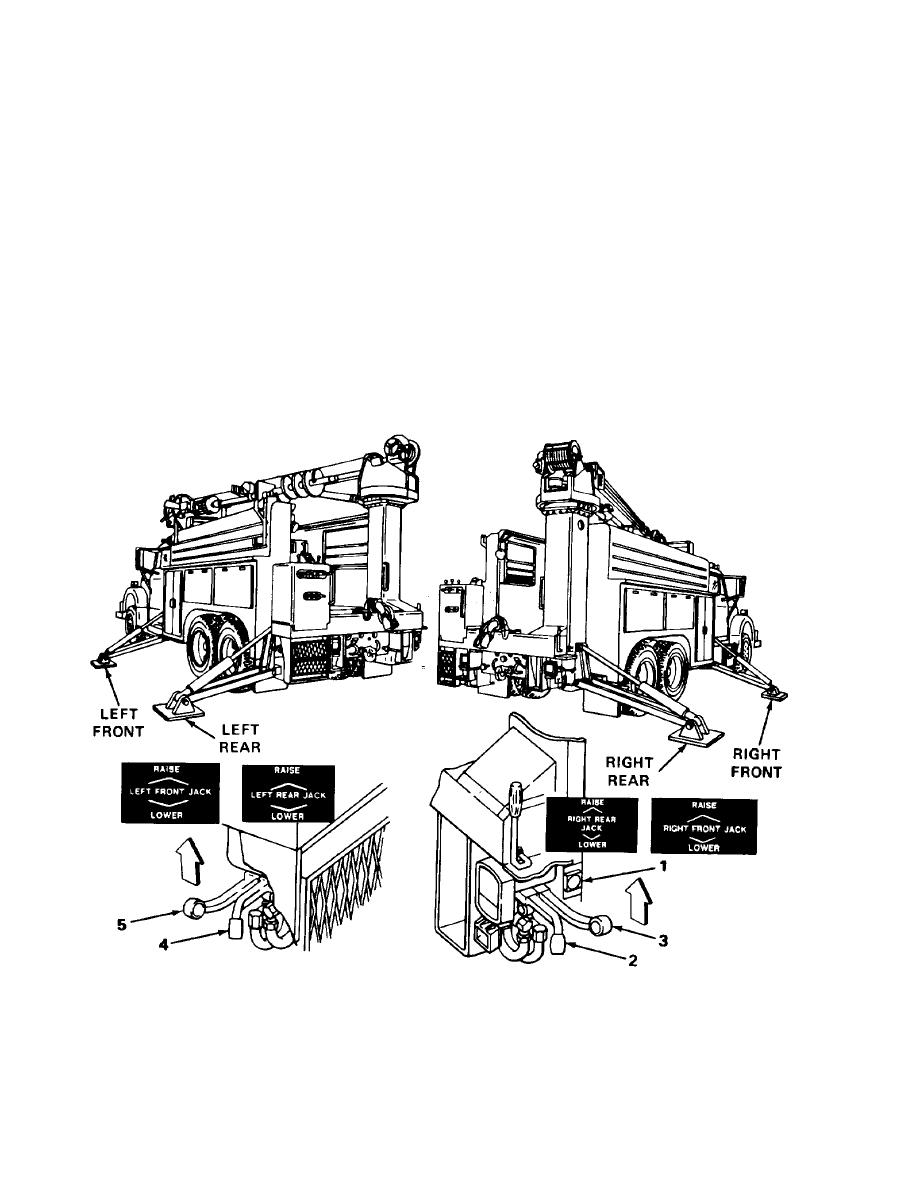

Operating the Outrigger Controls, Right Side
1.
Push emergency button (1) and hold it in.
2.
Raise right front and right rear outriggers using controls (2) and (3).
Operating the Outrigger Controls, Left Side
3.
Have assistant help you by having him hold the emergency button (1) in, while you operate the controls (4)
and (5) to raise the left side outriggers.
NOTE
Check for reason engine stalled, using the troubleshooting procedures in this manual. If
you cannot re-start truck, notify organizational maintenance.
TA 222602
2-113
