TM
9-2320-279-10-2
M984E1 General Operating Procedures (Cont)
TOW M984E1 (CONT).
2-74.
WARNING
When end caps are removed from crosstube, adapters
may slide off causing personal injury.

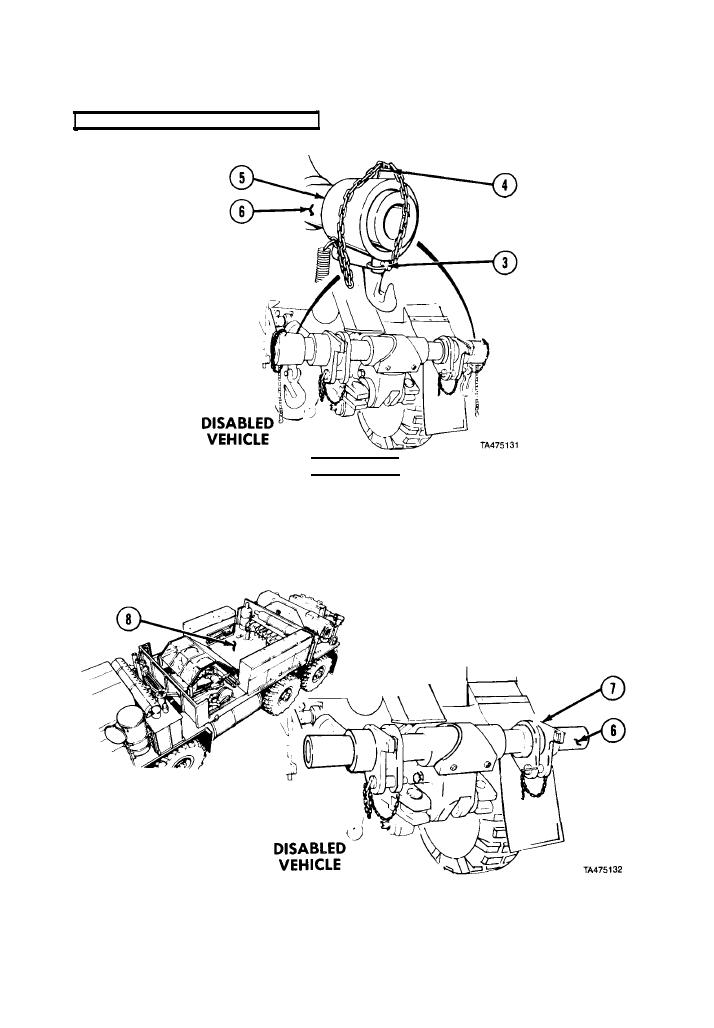

(3) Remove two quick pins (3) and pins (4) from end caps (5) on disabled
vehicle.
(4) Remove two end caps (5) from crosstube (6).
(5) Remove two M977 front adapters (7) from crosstube (6) and place on
equipment body floor (8).
2-188
