TM 9-2330-231-14&P
BLACKOUT STOPLIGHT - CONTINUED
INITIAL SETUP
Tools
Tools - Continued
Handle, reversible, 3/8-inch square
Socket, 1/2- by 3/8-inch square drive
drive
ACTION
LOCATION
ITEM
REMARKS
REMOVAL

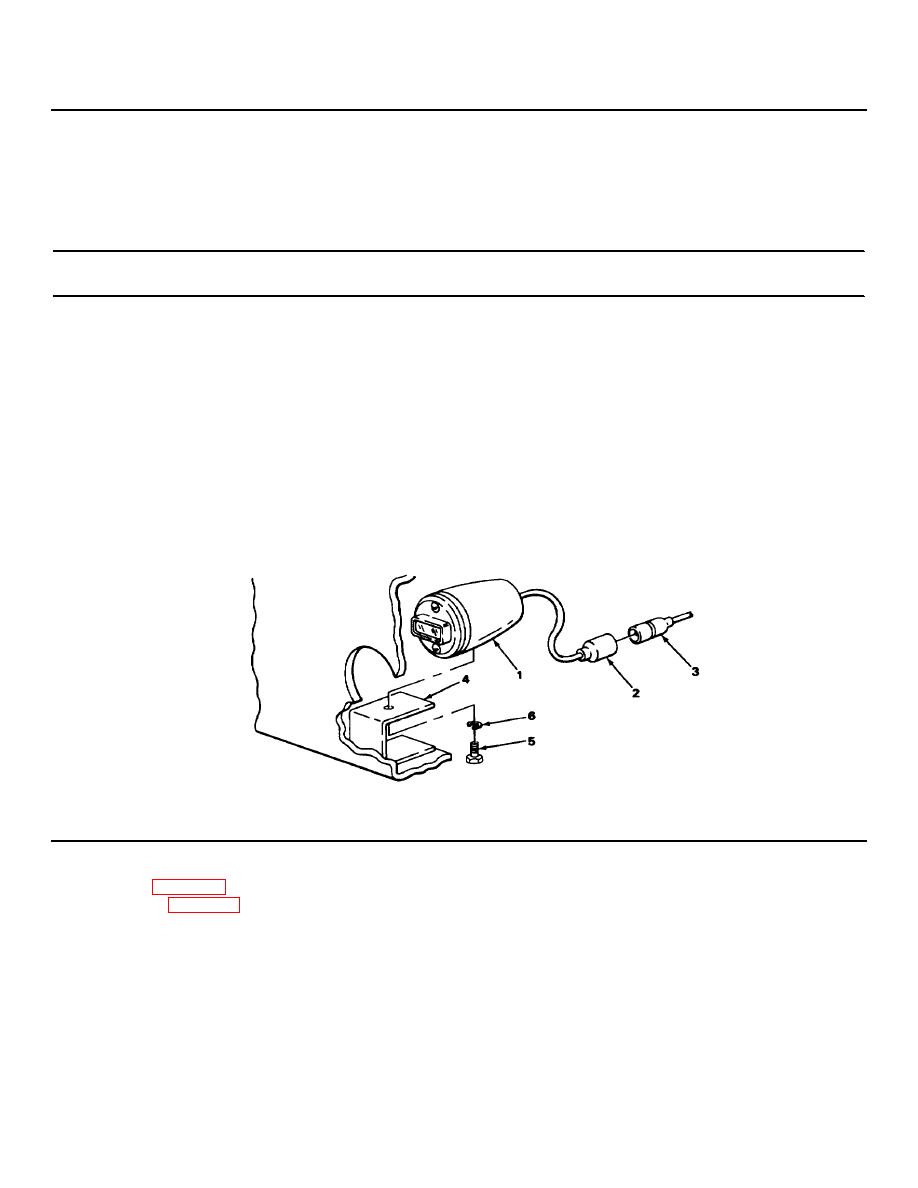

1. Blackout
Electrical con-
Separate.
stoplight (1)
nectors (2 and 3)
2. Bracket (4)
Capscrew (5) and
Using 1/2-inch socket, unscrew.
lockwasher (6)
Remove blackout stoplight (I).
INSTALLATION
3. Bracket (4)
Capscrew (5) and
Using 1/2-inch socket, attach blackout
lockwasher (6)
stoplight (1).
4. BIackout
Electrical con-
Reconnect.
stoplight (1)
nectors (2 and 3)
TASK ENDS HERE
COMPOSITE LIGHT LAMP AND LENS
This task covers:
a. Removal (page 4-19)
b. Installation (page 4-19)
