TM 9-2330-247-14&P

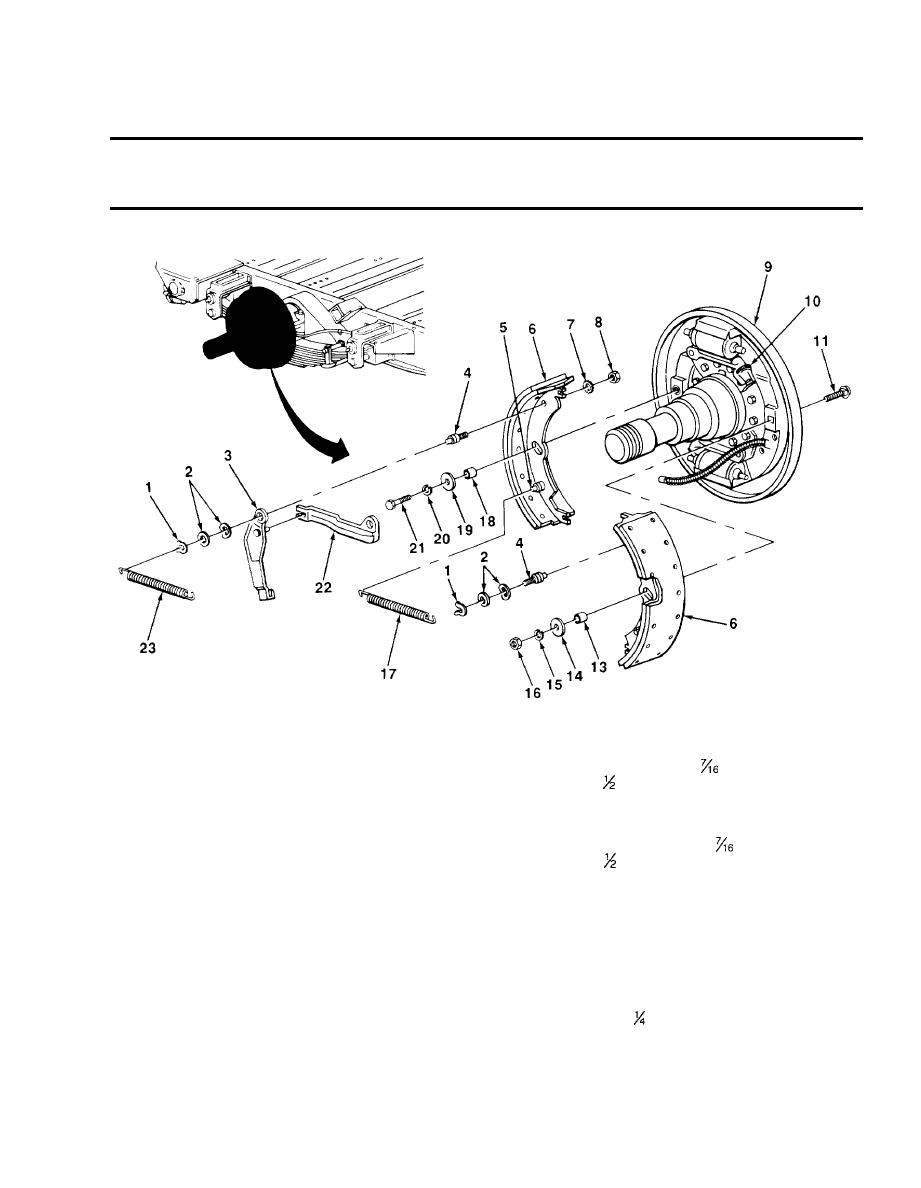

4-32. BRAKESHOE ASSEMBLY (Con't)
ACTION
ITEM
REMARKS
LOCATION
17,
Screw in and tighten using
Backing plate
Screw (11 ), spacer
(13), washer (14),
handle with in. drive.
(9) and
Iockwasher (1 5),
brakeshoe
and nut (16)
assemblies (6)
Screw in and tighten using
18
Screw (21),
handle with in. drive, and slip-joint pliers.
Iockwasher (20),
Screw (21) mounts hydraulic tee to
washer (19),
backing plate (9).
and spacer (18)
a. Push together with opening on link (22) sliding
Two upper pins (4)
Brakeshoe lever
19.
into pin on back of brakeshoe lever (3).
(3) and link (22)
b. Place in position on upper pins (4).
a. Put washers on upper pins (4).
Four washers (2)
20.
b. Slide slotted washers on upper pins (4). Using
and two slotted
hammer and in. flat-tip screwdriver, tap the rest
washers (1)
of the way on.
TA701078
4-61
