TM 9-4120-370-14
TO 35E9-229-1
4-19. ACTUATING CYLINDER ACCESS COVER - Continued.
Inspection
b.
(1) Check that cover is not bent, cracked, or punctured. If damaged refer to direct support maintenance.
(2) Check that insulation is not torn, loose, or missing. Refer repair/replacement to direct support
maintenance.
c.
Installation
(1) Aline mounting holes with casing fasteners.
(2) Using screwdriver, secure cover to casing with four screws and flat washers.

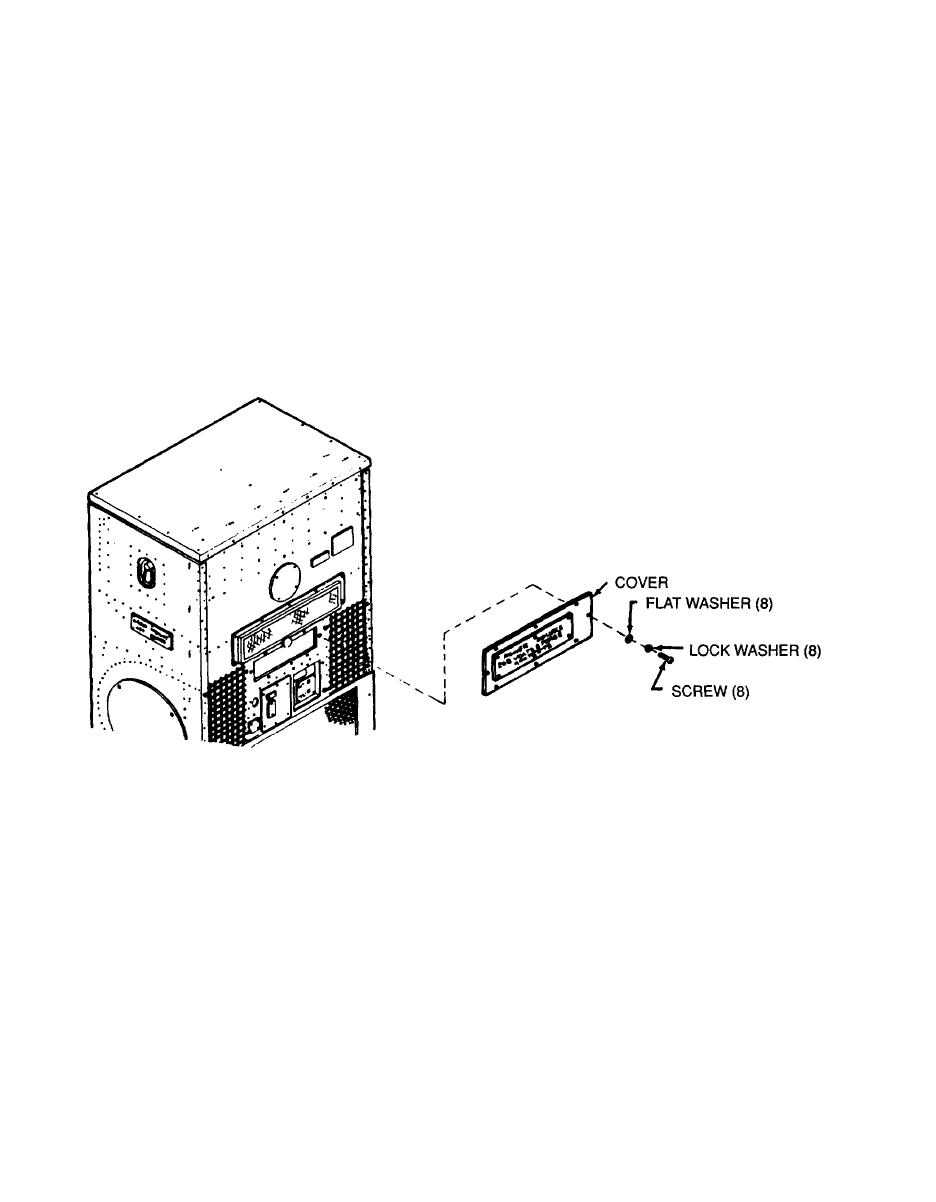

a.
Removal
(1) Using screwdriver, remove eight screws, Iock washers, and flat washers.
(2) Remove cover.
Inspection
b.
(1) Check that cover is not bent, cracked, or punctured.
(2) Check that gasket is not torn, loose, or missing.
(3) Check that POWER SOURCE plate is readable and in place.
(4) Refer all repairs/replacement to direct support maintenance.
Installation
c.
(1) Aline mounting holes with casing fasteners.
(2) Using screwdriver, secure cover to casing with eight screws ,lock washers, and flat washers.
