TM 9-2320-211-10
g. Shear Pin Replacement
WARNING
Never substitute rivets, pins or
bolts for the regular shear pin.

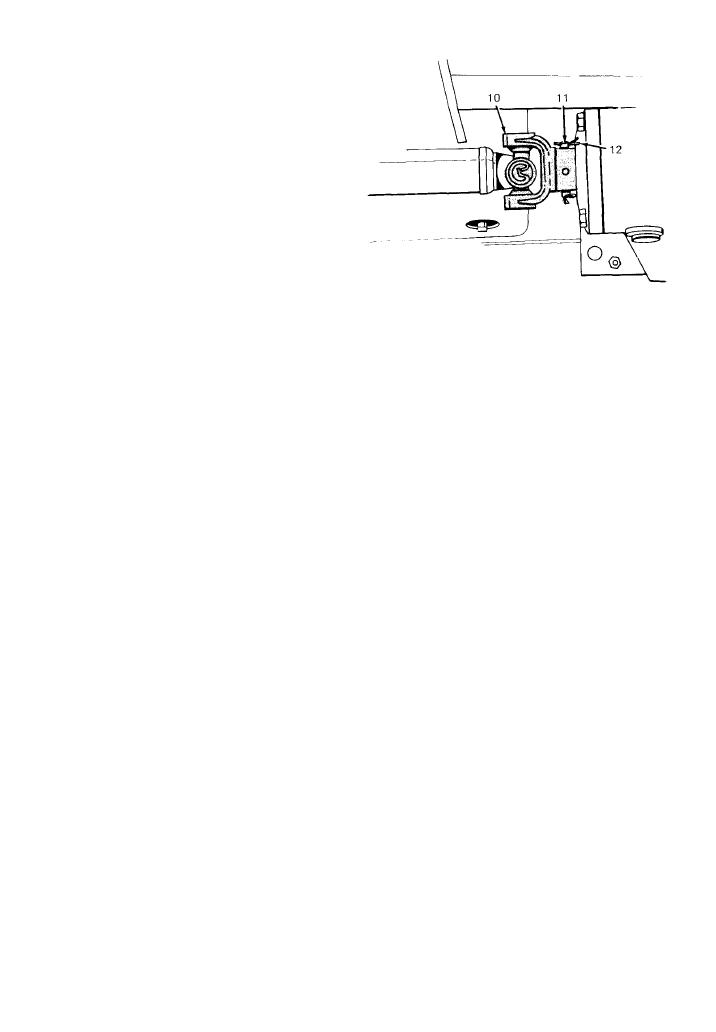

(1) Rotate universal joint (10) on winch drive shaft and aline shear pin holes in yoke
with holes in shaft.
(2) Drive broken part of shear pin from winch drive shaft.
(3) Lubricate and insert new aluminum alloy shear pin (11) into holes in the yoke and
drive shaft.
(4) Install cotter pins (12) in each end of shear pin.
TA 067043
