TM 9-2320-279-10-2
M984E1
General
Operating
Procedures
(Cont)

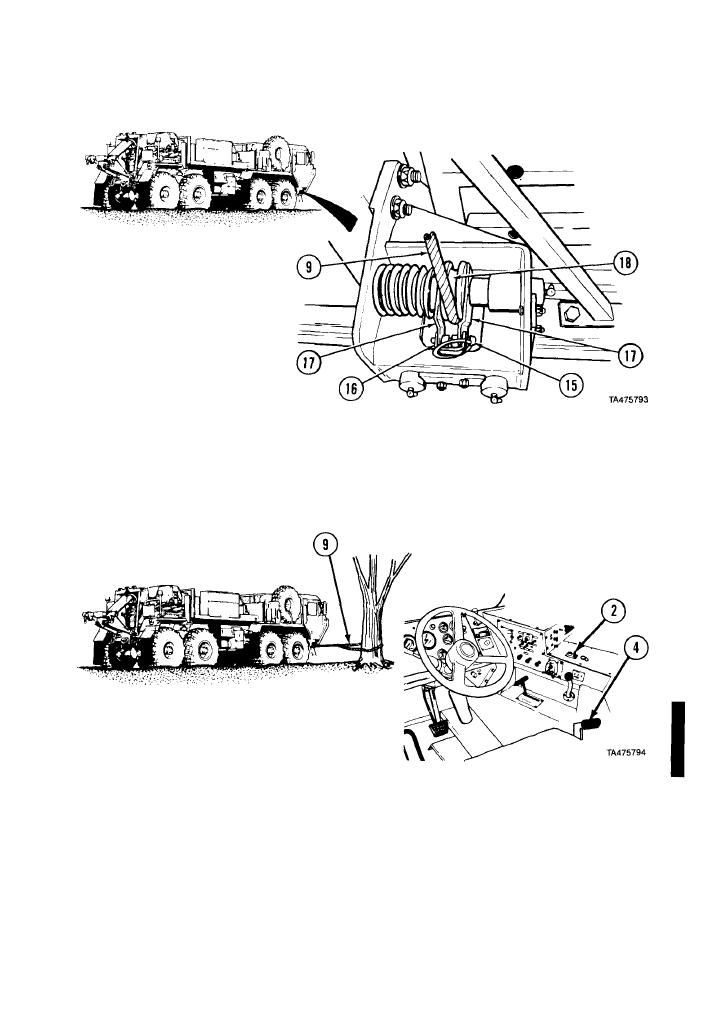

(19) Remove quick release pin (15) and guide bracket (16). Move cable guide
brackets (17) apart so cable (9) can be placed against bottom of
sheave (18).
(20) Move cable guide brackets (17) together. Install guide bracket (16) and
quick release pin (15).
(21) Set PTO ENGAGE switch (2) to ON.
(22) Soldier A moves winch shift lever (4) to OUT and pays out winch
cable (9) while Soldier B pulls cable to tree, another heavy vehicle
(para 2-43a), or heavy object (FM 20-22).
(23) When winch cable (9) is let out to heavy object, set winch shift
lever (4) to center position.
(24) Set PTO ENGAGE switch (2) to OFF.
2-659
