TM 9-2330-285-14&P/TO 36A11-21-10-1
HUB AND BRAKE DRUM - CONTINUED
ACTION
REMARKS
ITEM
LOCATION

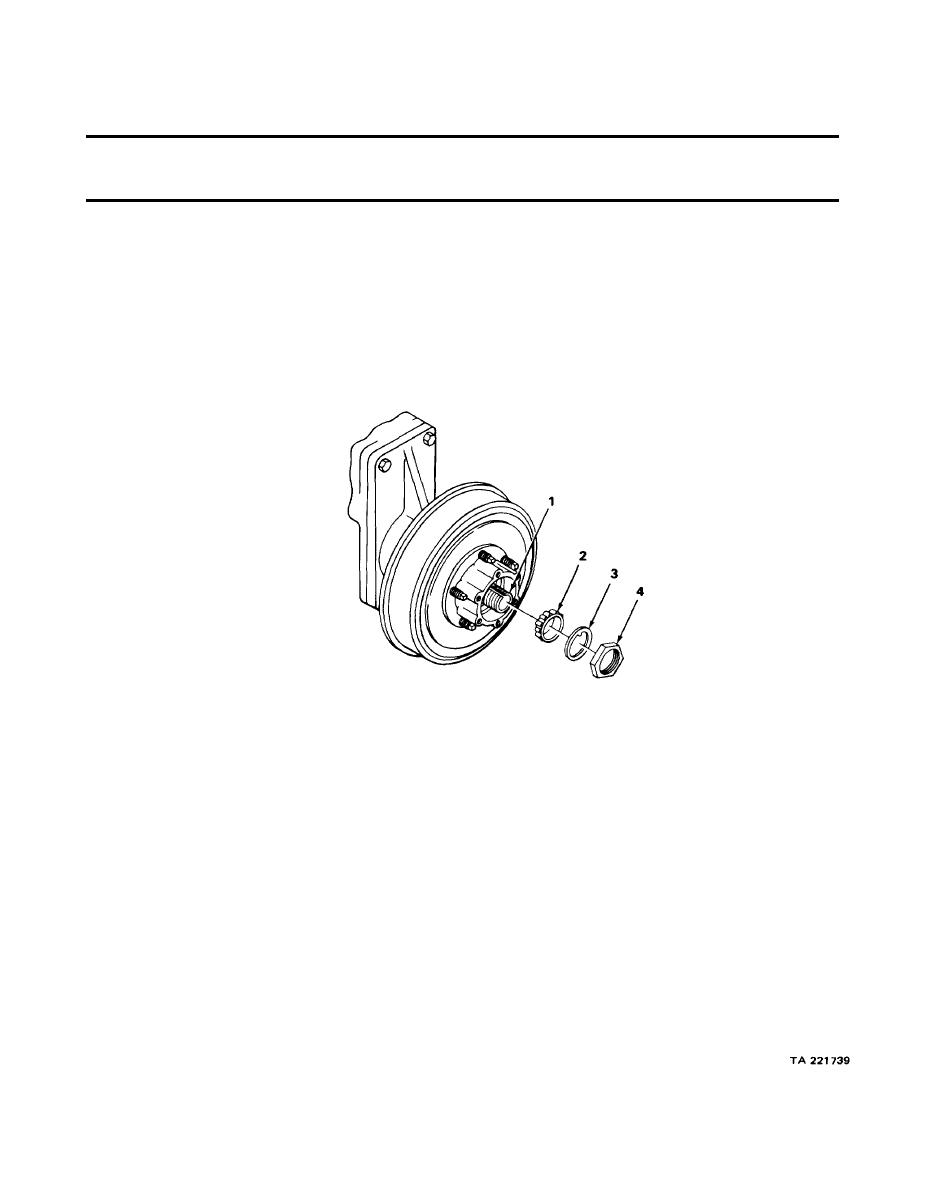

HUB AND BRAKE DRUM INSTALLATION - CONTINUED
Put onto spindle.
Outer bearing
18 spindle (1)
cone (2)
Put onto spindle.
Bearing washer (3)
19
Put onto spindle using wheel bearing socket
Adjusting nut (4)
20
Do not tighten.
WHEEL BEARING ADJUSTMENT
Using wheel bearing wrench, adjust the
Adjusting nut (2)
21 Spindle (1)
a. Tighten the adjusting nut (2) until
wheel drags slightly.
b. Back the nut off until the wheel spins
free and there is no looseness felt when
the wheel is rocked.
Slide on.
Lockwasher (3)
22 Spindle (1)
