4-24. UPPER OUTRIGGER LIMIT SWITCH MAINTENANCE (Con't).
10.

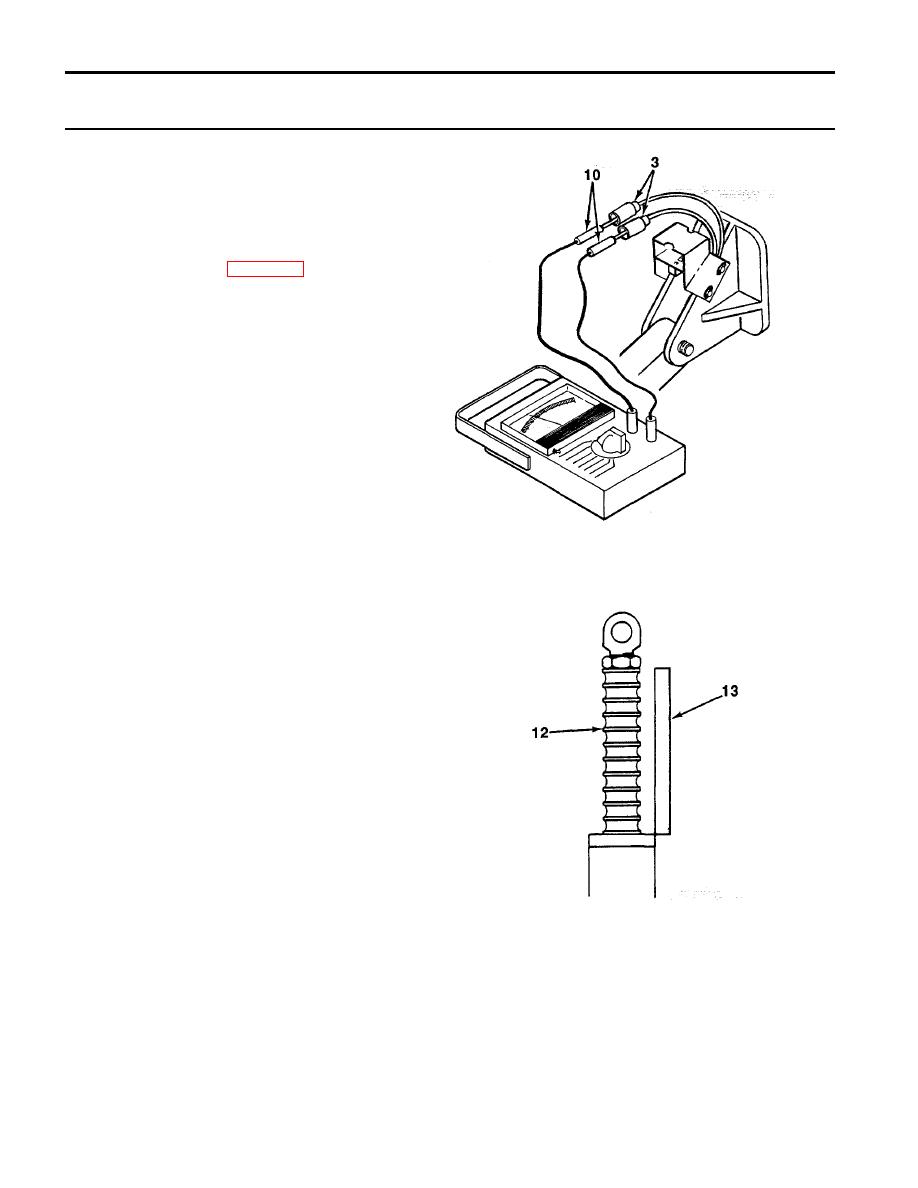

Remove multimeter probes (10) from switch
connectors (3).
11.
Connect switch connectors (3) as tagged, to
harness connectors.
12.
Raise outrigger (para 2-12) using outrigger
control panel switch until outrigger stops
automatically.
NOTE
Screw length Is checked from top of ball nut to top of screw. DO NOT include rod end
nut In check.
13.
Check length of screw (12) with switch
adjustment tool (13).
14.
If length of screw (12) is not equal to length of
switch adjustment tool (13), repeat steps 1
through 13 until lengths match.
