TM 9-2350-222-10-3
M A I N T A I N PERISCOPES (REPLACE LAMPS)

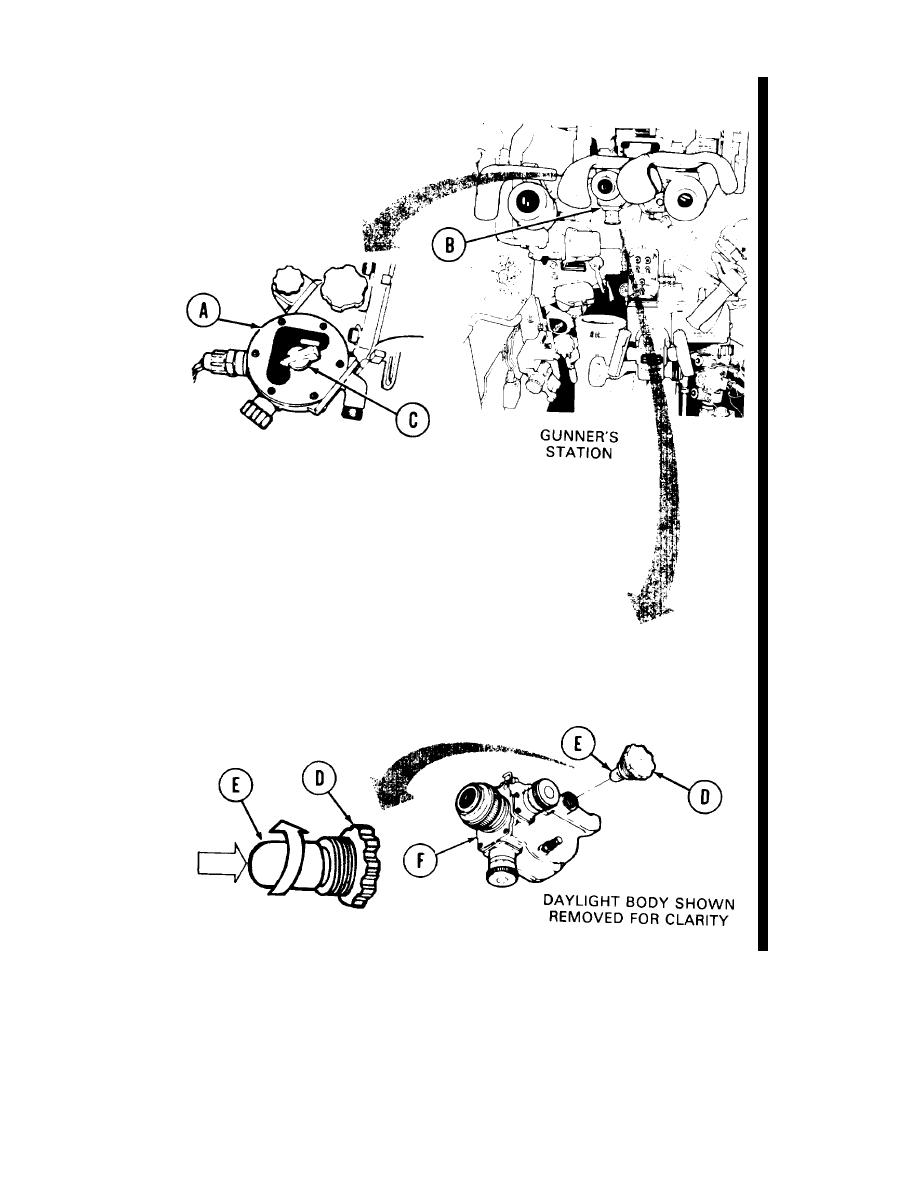

To Replace Lamp in M32CE1 Day-
light Body:
NOTE
Light source control (A) is lo-
cated behind periscope (B).
1. Set light source control knob (C) on
light source control (A) to OFF.
2. Unscrew lampholder (D) with lamp
(E) from daylight body (F).
3. Push in on lamp (E) and turn to
loosen.
4. Pull lamp (E) from lampholder (D).
TA252990
Change 1 3-228.1
