TM 9-4120-385-14

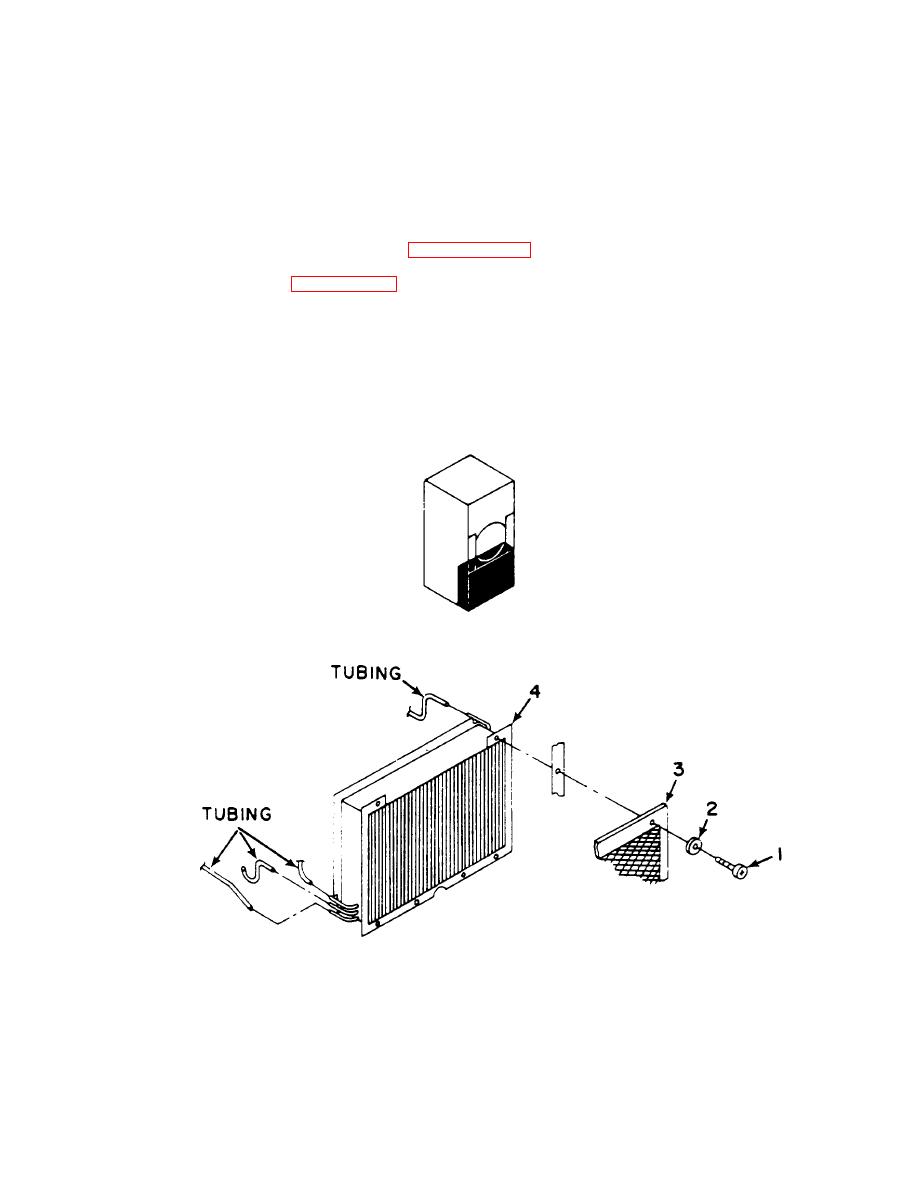

3. Remove six screws (1) and flat washers (2) and condenser guard (3).
4. Loosen two panel fasteners and remove lower panel.
5. Loosen four captive screws and remove junction box with control panel.
6. Perform leak test. Refer to Paragraph 5-3. Repair if leaks are detected.
b. REMOVAL. See Figure 5-15
