4-37. HYDRAULIC LINES, HOSES, AND FITTINGS REPLACEMENT (Con't).

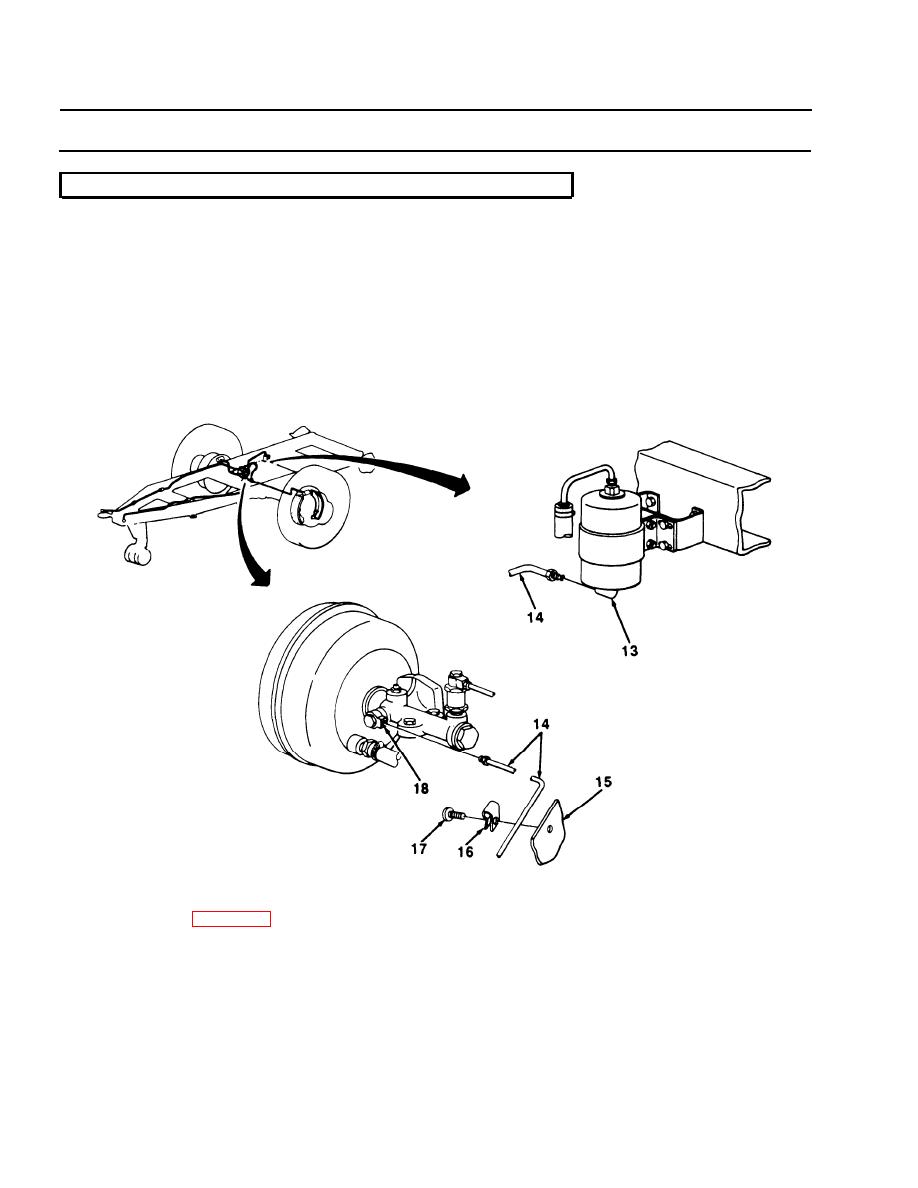

HYDRAULIC TANK TUBE ASSEMBLY REPLACEMENT (M105A2C)
d.
NOTE
A suitable container should be used to catch any draining brake fluid. Ensure that ail
spills are cleaned up.
Remove screw (17) and clamp (16) from tube assembly (14) and framerail (15).
1.
Remove tube assembly (14) from master cylinder (18) and hydraulic tank (13).
2.
Install new tube assembly (14) on hydraulic tank (13) and master cylinder (18).
3.
Secure tube assembly (14) to framerail (15) with clamp (16) and screw (17).
4.
