TM 9-4120-385-14
Slowly open the refrigerant cylinder (Rll) valve and allow to flow through the
9.
system until the discharge becomes clear.
10. Close the refrigerant cylinder valve, low pressure service valve, and the high
pressure service valve.
11. Remove fabricated jumper line for dehydrator.
12. Install replacement dehydrator. Refer to Paragraph 5-22.
13. Repeat steps 9 and 10.
14. Disconnect service hoses and remove refrigerant cylinder.
15. Remove compressor jumper lines.
16. Install new compressor. Refer to subparagraph h.
d . INSPECTION. See Figure 5-11.

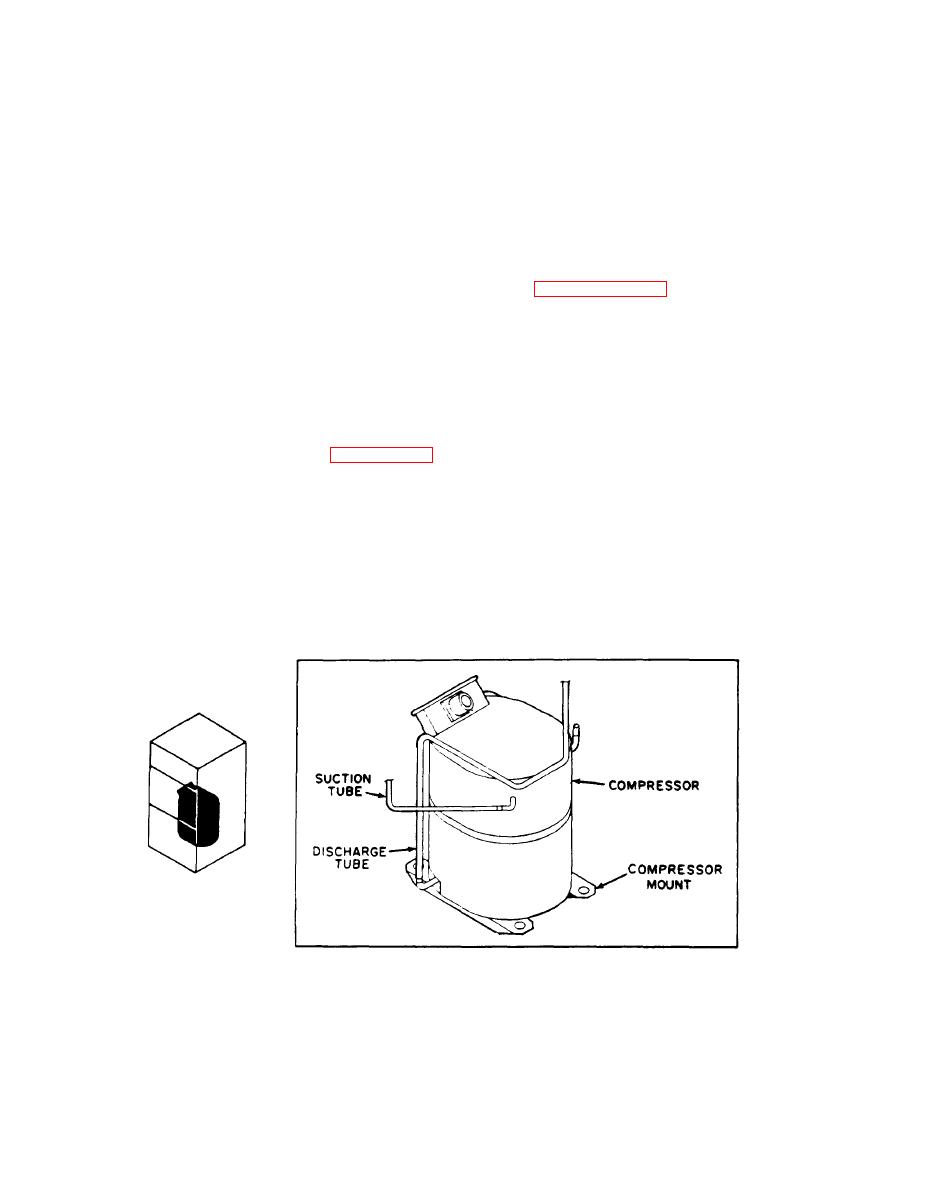

Figure 5-11. Compressor.
