TM 9-4120-407-14
(i) Tag wire leads (17).
(j) Remove four nuts (18), lock washers (19), and wire leads (17). Discard lock washers.
(k) Remove four screws (20), lock washers (21), flat washers (22), and plate (23). Discard lock
washers.
NOTE
Steps (1) and (m) only apply to removal of the bottom box, fitting,
and wiring harness. Do not perform these steps if only the EMI filter
is being removed.
(1) Remove harness nut (24) and wiring harness (25).
(m) Remove fitting nut (26) and fitting (27).
(3) EMI Suppressors (FC1through FC7) Removal.
NOTE
Removal of EMI suppressors is required only if they are damaged and
need replacement.
(a) Tag wire lead, then cut and remove tiedown strap (1) Figure 3-40.

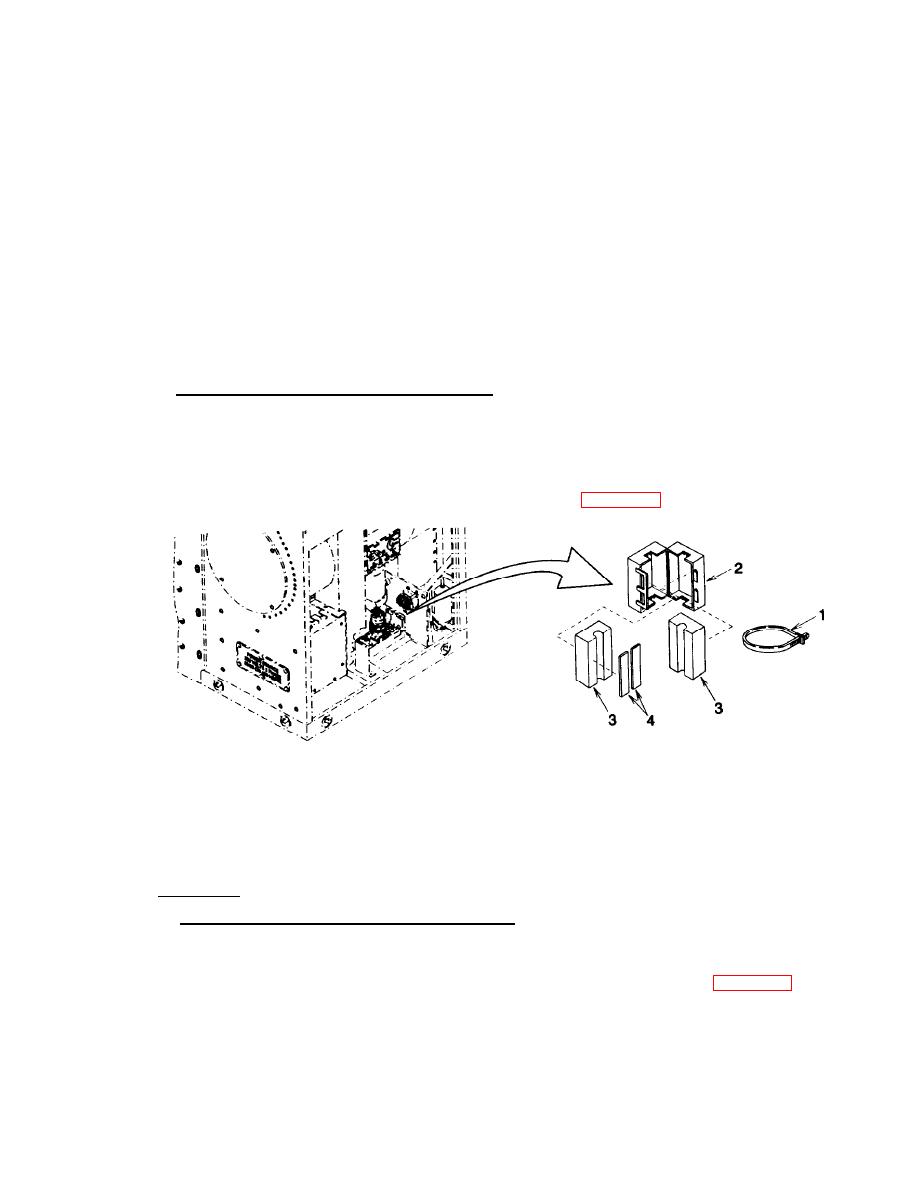

Figure 3-40. EMI Suppressors (FC1 through FC7)
(b) Open case (2).
(c) Remove two core halves (3).
(d) Remove two tape strips (4). Discard tape strips.
c. Installation.
(1) EMI Suppressors (FC1 through FC7) Installation
(a) Attach two new tape strips (4) to one core half (3).
(b) Place two core halves (3) around wire lead per tag and wiring diagram Figure 3-5. Remove
tags.
(c) Secure case (2) around core halves (3) with new tiedown strap (1).
3-103
