TM 9-2330-294-14
b. Disassembly.
(2) Lubricate pivot Pin with oil (OE/HDO), and
NOTE
install pin and retaining rings in outer arm and frame
Disassembly and assembly on both landing
bracket.
gears are the same.
(3) Lubricate center hinge rod with oil (OE/
(1) Remove retaining ring and square washer
HDO), and install portion of pin in inner rear arm
and frame bracket.
from pin at foot. Remove pin.
(2) Remove forward arm and rear arm assembly
(4) Carefully position left landing gear in frame
from foot.
brackets.
c. Assembly.
(5) Lubricate remaining pivot pin with oil
(1) Position forward arm in foot assembly.
(OE/HDO), and install pin and retaining rings in
(2) Position rear arm assembly in foot assembly
outer rear arm and frame bracket.
and aline arm holes with holes in foot.
(6) Complete installation of center pivot pin
(3) Lubricate hinge pin with oil (OE/HDO), and
through both landing gear assemblies and install
install pin in foot. Install square washer and
retaining rings.
retaining ring on pin.
(7) Coat with oil (OE/HDO), and install two
d. Installation.
retaining pins to forward arms and frame bracket.
(1) Carefully position right landing gear in
Install quick-release lock pins in retaining pins.
frame brackets.

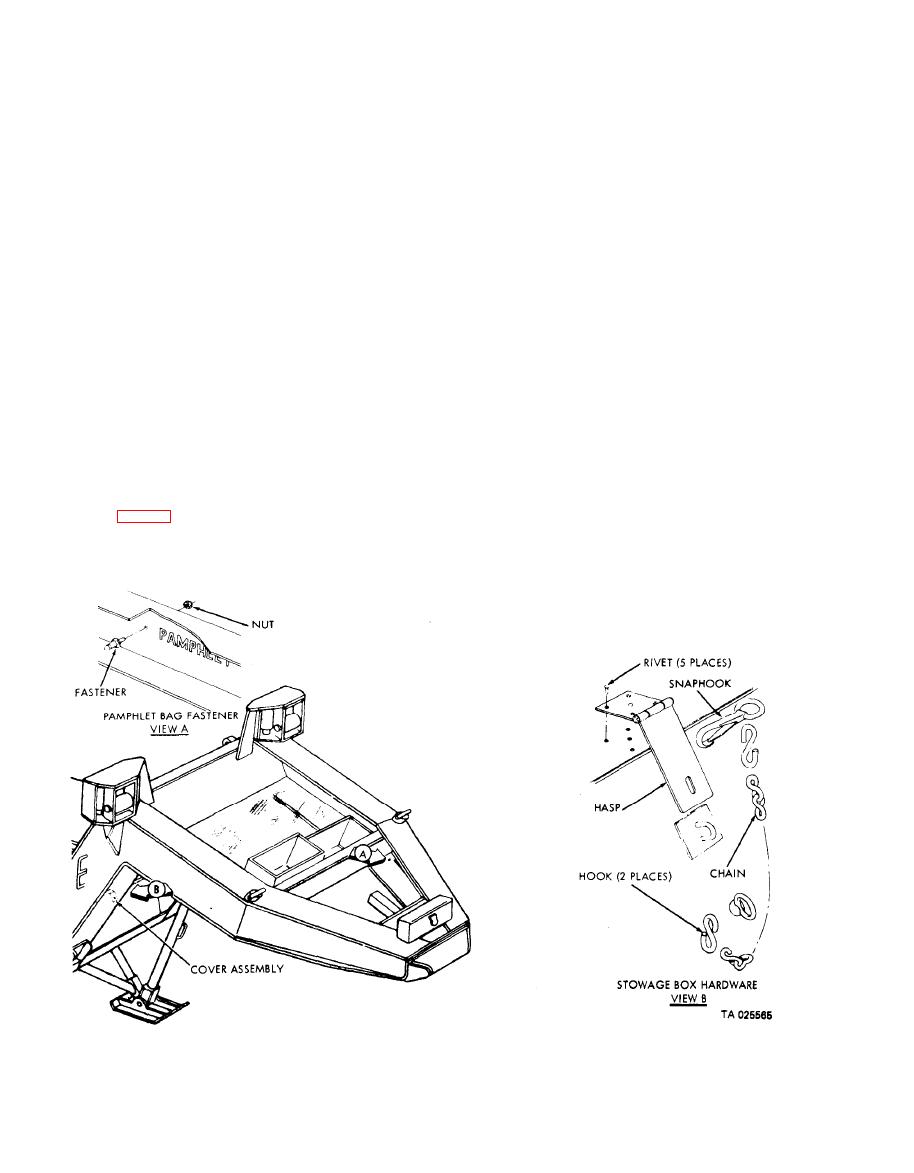

Section XII. STOWAGE PROVISIONS, WINCHING COMPONENTS
AND ACCESSORY ITEMS MAINTENANCE
Knock out old hasp rivets with chisel and hammer
and replace hasp.
b. Pamphlet Bag Fastener. Replace damaged
a. Stowage Compartment Hardware. Replace
pamphlet bag fastener.
damaged snap hooks, hooks, chains, and hasps.
