TM 9-2330-357-14&P

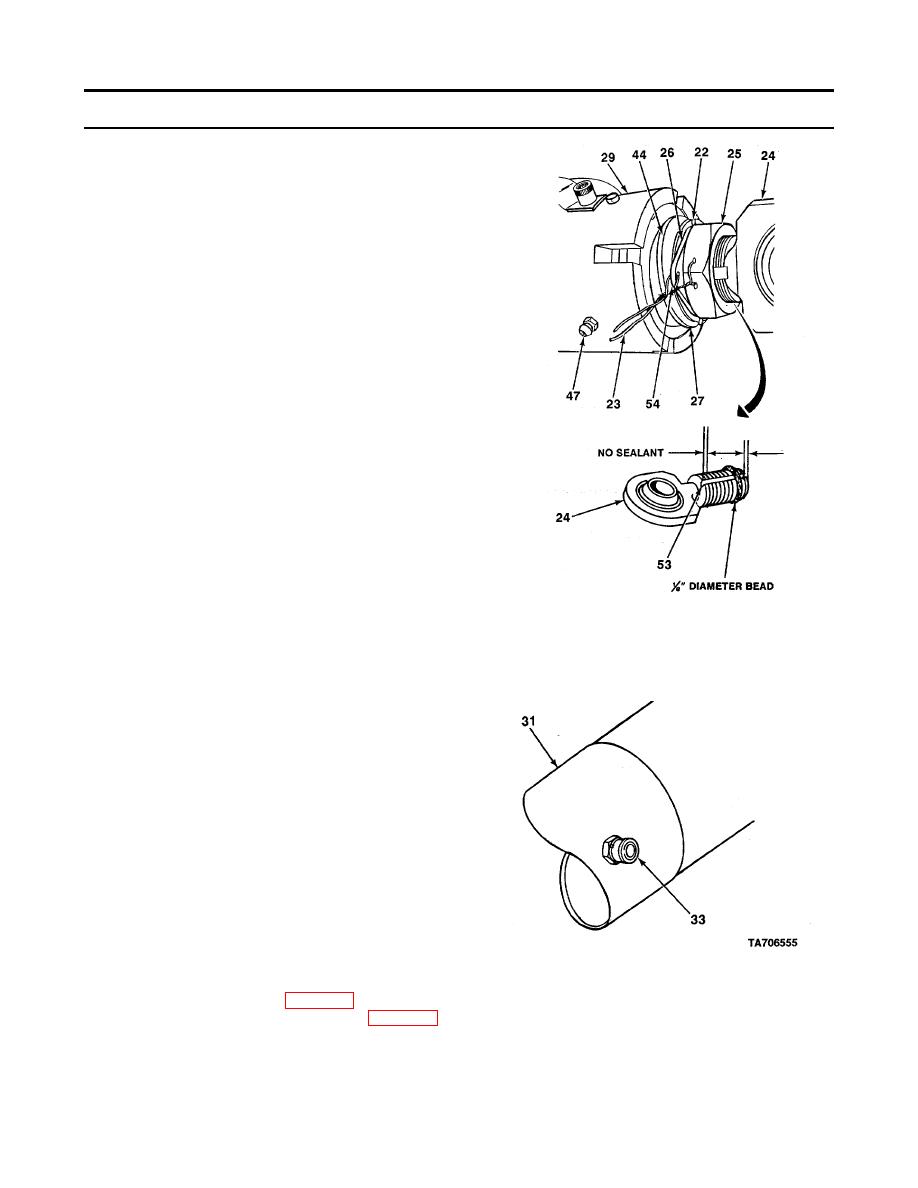

5-11. OUTRIGGER ACTUATOR ASSEMBLY REPAIR (Con't).
55.
If removed, install lube fitting (47) into ball nut
(29).
56.
Install jamnut (25) onto shank of rod end (24)
as far as it will go.
57.
Install lockwasher (26) onto shank of rod end
(24) with flat face of lockwasher against jamnut
(25) and lockwasher tang (54) in key slot.
58.
Fill keyway (53) with adhesive until flush with
thread outside diameter for full length of
keyway. Allow to set for one hour.
59.
Approximately in. (0.64 cm) from start of
threads of rod end (24), apply X in. diameter
bead of adhesive to full diameter of rod end.
60.
Wipe ball screw subassembly (27) end face
and fill four slots (22) with adhesive.
61.
Ensure that lockwasher tang (54) is engaged in
ball screw subassembly (27) face slot (22).
62.
Tighten jamnut (25) against lockwasher (26)
and ball screw (44).
63.
Install new lockwire (23) to lockwasher (26)
and jamnut (25).
64.
Install air vent (33) into extension cover (31).
Install outrigger drive motor (para 4-50).
Install outrigger actuator onto semitrailer (para 4-48).
5-49
