TM 9-2330-386-14&P

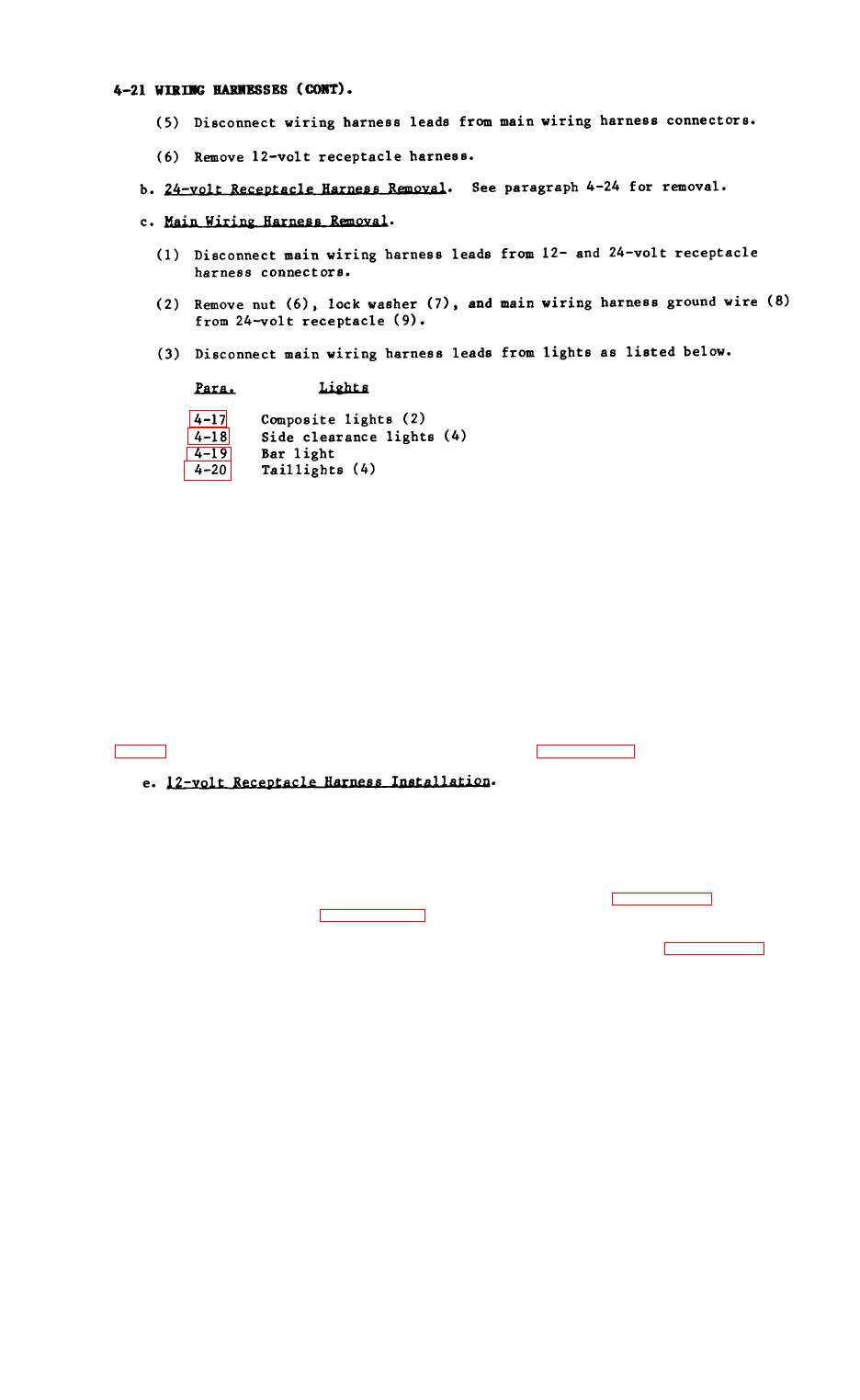

NOTE
Record wiring harness routing to aid installation.
( 4 ) Bend loop clamps away from harness and lift main wiring harness from loop
clamps.
(5) At rear of semitrailer, note location of three tie straps to a i d
installation. Cut tie straps and remove from main wiring harness. Discard
tie straps.
(6) Pull main wiring harness through grommets located in frame and remove from
semitrailer.
d. Repair. Repair is limited to splicing of damaged wires, connectors (para.
4-22), and replacement of 24-volt receptacle pins (para. 4-24).
(1) Connect wiring harness leads to main wiring harness connectors.
(2) Install wiring harness ground wire (5), lock washer (4), and nut (3) on
24-volt receptacle (9).
(3) Connect wiring harness leads to light switch (11) (para. 4-25) and light
resistors (12) (para. 4-26).
(4) Connect wiring harness leads to 12-volt receptacle (10) (para. 4-23).
4-31
