TOOLBOX COVER - CONTINUED
ACTION
REMARKS
ITEM
LOCATION

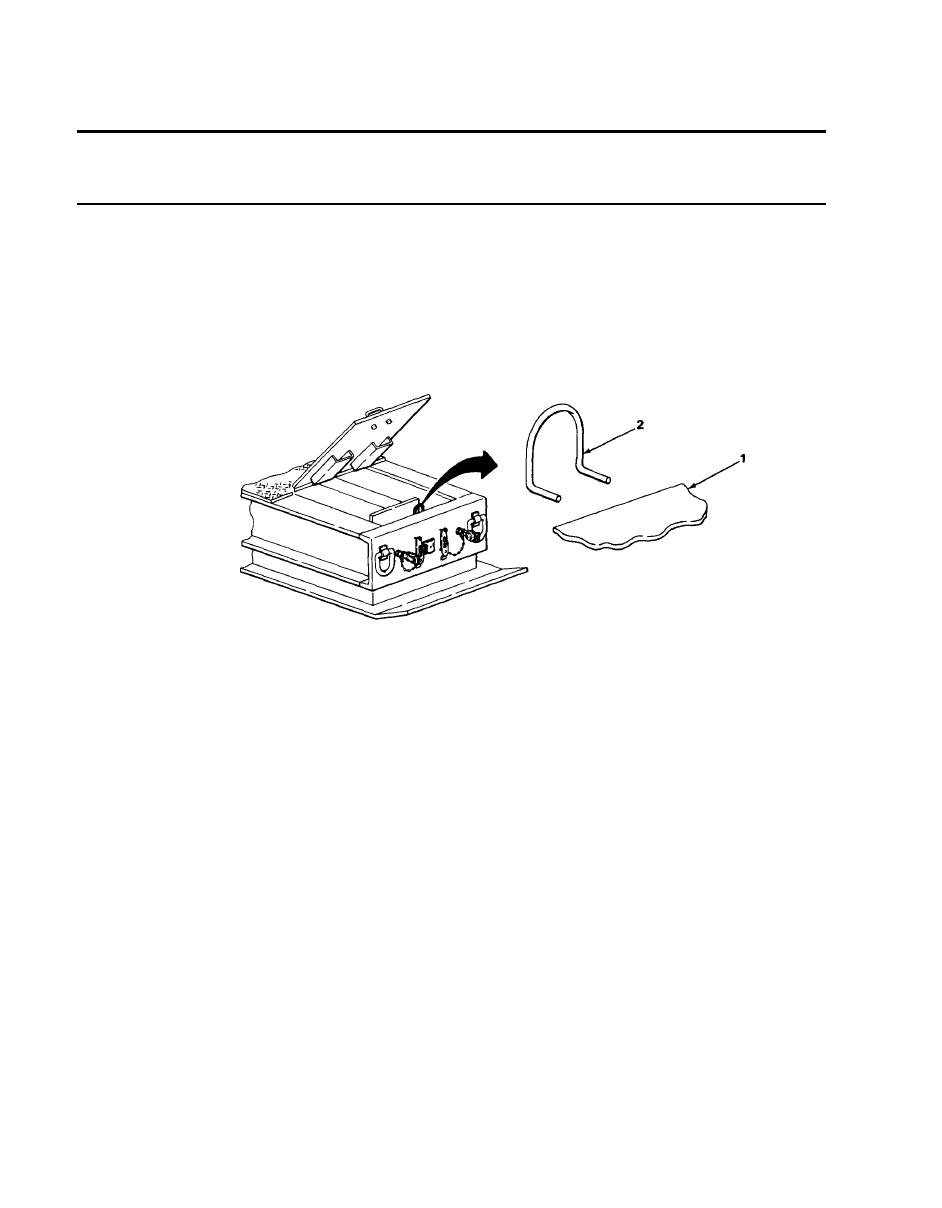

LATCH EYE REPAIR
a. Mark location for installation.
Latch eye (2)
Front of nose
5.
b. Using chisel and hammer, cut off.
box (1)
a. Clamp in position using C-clamp.
New latch eye (2)
6.
b. Weld to nose box (1) using arc welder.
See TM 9-237.
HINGE REPAIR
a. Mark location for installation.
Two hinges (5)
Cover (3) and
7.
b. Using acetylene torch, cut weld away
gooseneck (4)
from cover and gooseneck.
Using grinder, grind off.
Cover (3) and
8.
gooseneck (4)
a. Place on cover (3) according to marks,
Two hinges (5)
9.
with center of hinge pivot 1/8 inch
(3 mm) rearward from cover.
b. Weld to cover (3) and gooseneck (4)
as shown below using arc welder.
See TM 9-237.
TA224304
