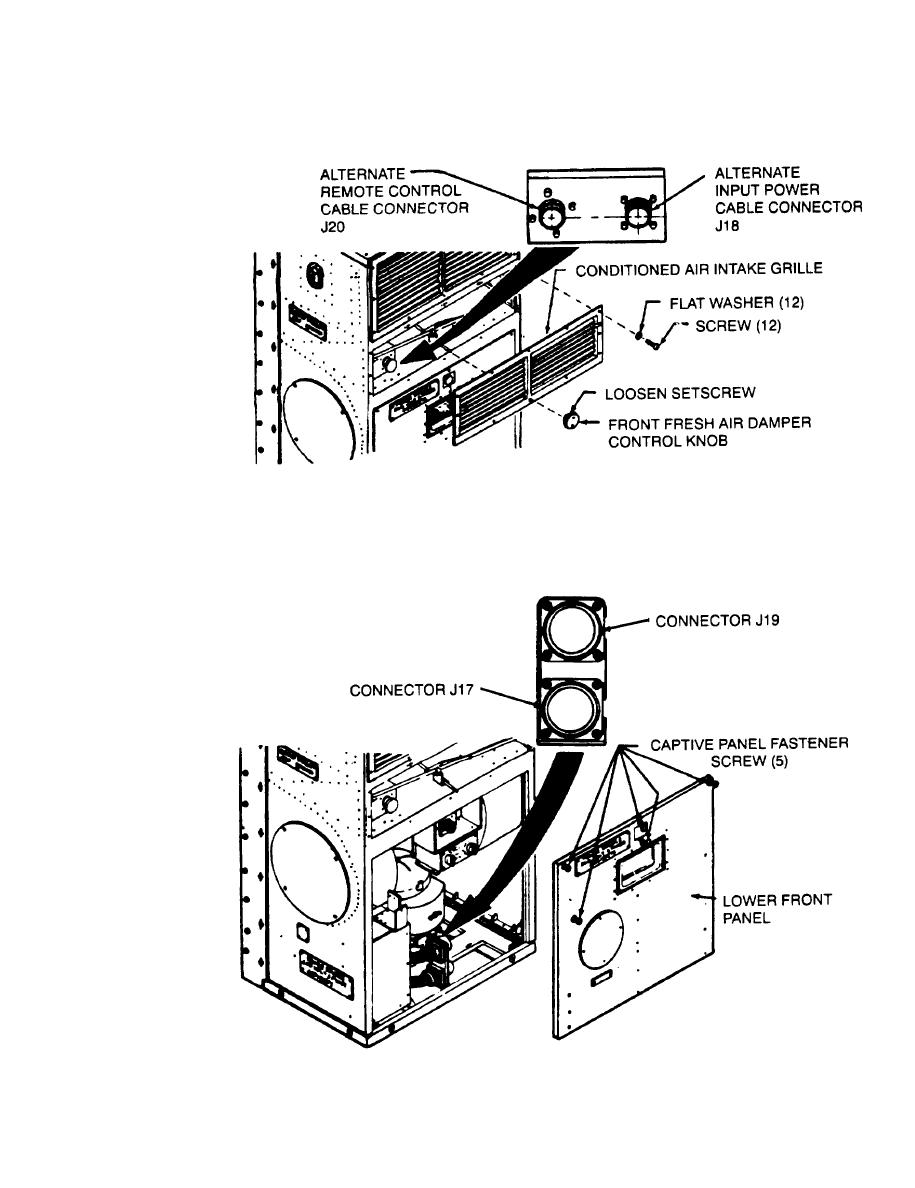

Figure 4-10. Return Air Duct Cable Connectors

TM 9-4120-370-14

TO 35E9-229-1

CABLE CONNECTIONS THROUGH RETURN (CONDITIONED AIR INTAKE) DUCT - Continued

Figure 4-10. Return Air Duct Cable Connectors

b. Using screwdriver, remove twelve screws and flat washers. Remove conditioned air intake grille. Be careful

not to damage grille gaskets. Store grille in a safe place for possible future use.

c. Check that electrical connector cover (for J1 connector in lower front panel) has been unscrewed from

connector.

Figure 4-11. Lower Front Panel Removal
